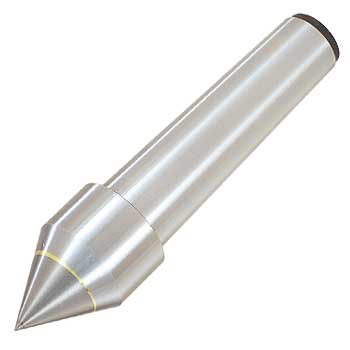

Features
- Below is the list of carbide tipped dead centers that could be made to order.
- Since these are made against order the delivery could take about 10-12 weeks of time minimum normally.
- Note that special sized carbide tips have to be made in a minimum quantity of 4-6 pieces.
- The below listed sizes of carbide tips have been standardized by us and hence can be ordered by you for even 1 piece. Any other special size ordered outside the below list of sizes has to be ordered for a minimum quantity of 4-5 nos.
Special Carbide Tip Dead Center Specifications - Standard Edition
Content

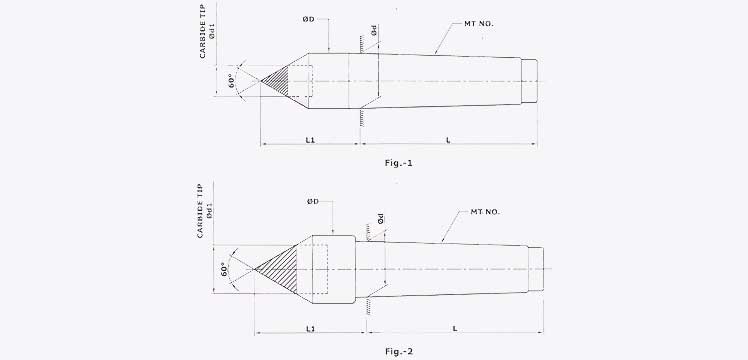

| MT NO. | CARBIDE TIP Ød1 mm | ØD mm | Ød mm | L mm | L1 mm | Fig. |
|---|---|---|---|---|---|---|
| MT-2 | 11 | 18 | 17.780 | 64 | 36 | 1 |
| MT-2 | 14 | 24 | 17.780 | 64 | 43 | 2 |
| MT-2 | 18 | 28 | 17.780 | 64 | 48 | 2 |
| MT-3 | 14 | 24.1 | 23.825 | 81 | 44 | 1 |
| MT-3 | 18 | 28 | 23.825 | 81 | 48 | 2 |
| MT-3 | 22 | 32 | 23.825 | 81 | 51 | 2 |
| MT-3 | 25 | 39 | 23.825 | 81 | 63 | 2 |
| MT-3 | 28 | 39 | 23.825 | 81 | 65 | 2 |
| MT-4 | 18 | 31.6 | 31.267 | 102.5 | 57.5 | 1 |
| MT-4 | 22 | 31.6 | 31.267 | 102.5 | 57.5 | 1 |
| MT-4 | 25 | 39 | 31.267 | 102.5 | 62 | 2 |
| MT-4 | 28 | 39 | 31.267 | 102.5 | 65 | 2 |
| MT-4 | 33 | 45 | 31.267 | 102.5 | 64 | 2 |
| MT-5 | 22 | 44.7 | 44.399 | 129.5 | 70.5 | 1 |
| MT-5 | 25 | 44.7 | 44.399 | 129.5 | 70.5 | 1 |
| MT-5 | 28 | 44.7 | 44.399 | 129.5 | 70.5 | 1 |
| MT-5 | 33 | 44.7 | 44.399 | 129.5 | 70.5 | 1 |
| MT-5 | 40 | 56 | 44.399 | 129.5 | 75 | 2 |
Special Carbide Tip Dead Center Specifications - Non Stardard Edition
Content
| Sr. No. | MT No. | Tip Diameter |
|---|---|---|
| 1 | MT-3 | AD-33 |
| 2 | MT-3 | AD-40 |
| 3 | MT-4 | AD-40 |
| 4 | MT-4 | AD-50 |
| 5 | MT-5 | AD-50 |
| 6 | MT-6 | AD-22 |
| 7 | MT-6 | AD-25 |
| 8 | MT-6 | AD-28 |
| 9 | MT-6 | AD-33 |
| 10 | MT-6 | AD-40 |
| 11 | MT-6 | AD-50 |
