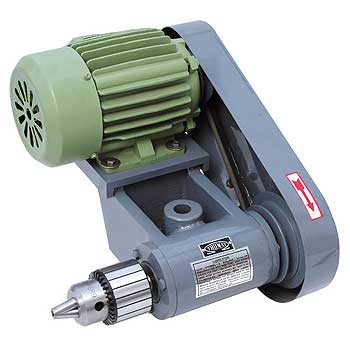

Keyway Milling Attachment

The keyway milling attachment can be used to mill keyways on shafts mounted between centers on a lathe. The Attachment is mounted on the lathe tool post and the end mill on the ¾" Drill Chuck. The attachment is supplied without electric motor. The Motor Pulley and the Spindle pulley are supplied along with the attachment.

This attachment can also be used to mill or drill holes or slots on jobs mounted on a lathe chuck keeping the lathe chuck stationary.

Motor : Use 0.5 HP 3 Phase 1440 rpm Electric motor.

Spindle Speed: 570 & 1080 rpm
