Applications

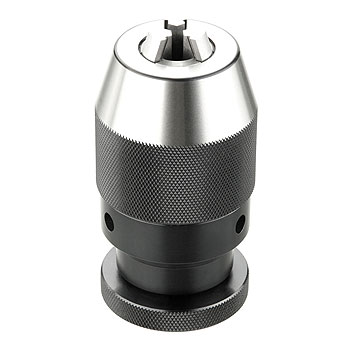

- All Keyless Drill Chuck are suitable for applications on Vertical/Horizontal CNC Machining Centers owing to their self tightening features.
- Wipe off the anti rust oil applied on both the Keyless Drill Female Taper & Drill Chuck Arbout Male Taper with MTO or Kerosene before assembling them together. Do not hammer or use press machine to lock the Drill Chuck Arbout & Keyless Chuck. This would distort the Chuck beyond repair.
- Heavy Duty Model specially designed for use on VMC/CNC. It is more accurate compared to the standard model.
- For right hand rotation application only.
- Supplementary Gripping Torque can be applied with the spanner which increases the gripping torque by up to 3 times
- All Keyless Drill Chuck supplied with one Spanner & MT-2 Arbor. Arbor of any other taper has to be seperately

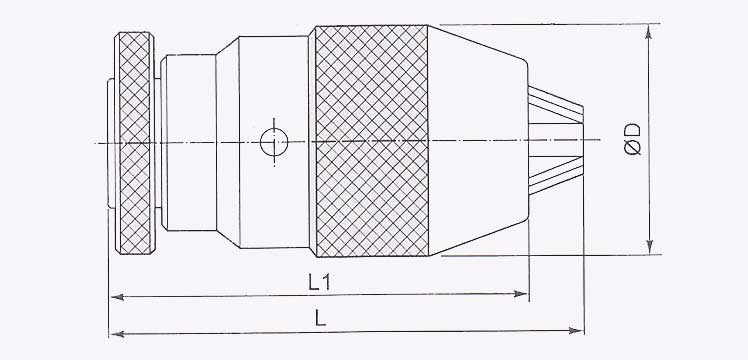

| Model | Size mm | L mm | L1 mm | D mm |
|---|---|---|---|---|
| STANDARD | 0.5 - 8 | 78 | 68 | 37.5 |
| 1 - 13 | 103 | 91 | 50.0 | |
| HEAVY DUTY MODEL | 0 - 6.5 | 69 | 62 | 34.0 |
| 1 - 13 | 103 | 91 | 50.0 |
ORDER BY : Model No. x SIZE Eg. Keyless Drill Chuck Standard 1-33 mm
