Applications
- Made from 20MnCr5 & Case Hardened to 55-58 HRc.
- Precision Ground Internally & Externally.
- Concentricity within 0.015 mm.

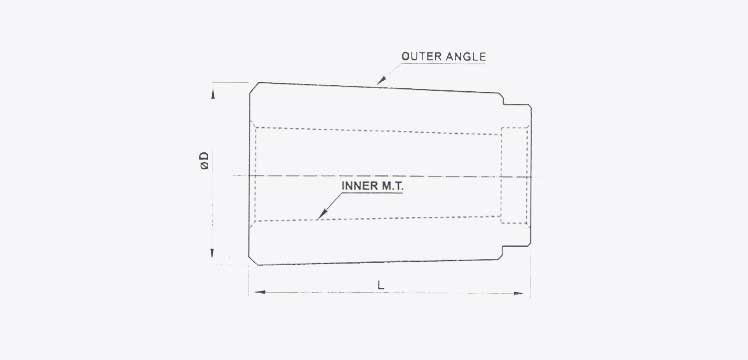

| Model | ØD mm | L mm | Innet M.T. | Outer Angle |
|---|---|---|---|---|
| MT 3-5 Standard | 44.7 | 70.5 | MT-3 | 1° 30' 26" |
| MT 3-5 Oversize (Only made against certain minimum order quantity) |
46.0 | 70.5 | MT-3 | 1° 30' 26" |
| MT 4-6 | 57.6 | 100.0 | MT-4 | 1° 29' 36" |

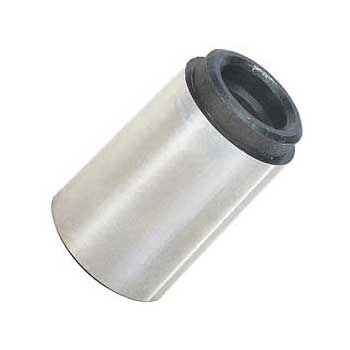

ORDER BY : MODEL No. eg. LATHE HEAD STOCK SLEEVE MT 3-5
