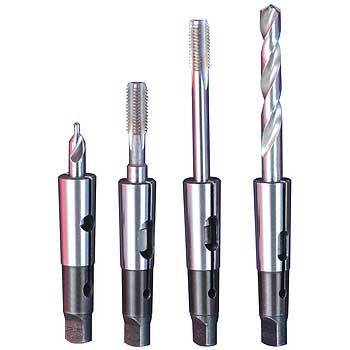

Split Sleeve

Description

TAP SPECIFICATIONS

TAP DIA. x SQUARE mmSHORT HAND TAP SIZEØd mmW mmAVAILABLE IN MT SIZESOTHER EQUIVALENT TAPS
Ø 3.15 X □ 02.50 M3 3.15 2.6 MT - 1 M4 Long M/C Tap, 1/8" BSW, BSF Short Hand Tap
Ø 4.00 X □ 03.15 M4 4.00 3.3 MT - 1 M5 Long M/C Tap, 5/32" BSW, BSF Short Hand Tap
Ø 4.50 X □ 03.55 M6 Long M/C Tap 4.50 3.7 MT - 1, 2 3/16" BSW, BSF Short Hand Tap
Ø 5.00 X □ 04.00 M5 5.00 4.2 MT - 1 3/16" BSW, BSF Short Hand Tap
Ø 6.30 X □ 05.00 M6 6.30 5.2 MT - 1, 2 M8 Long M/C Tap, 1/4" BSW, BSF Short Hand Tap
Ø 8.00 X □ 06.30 M8 8.00 6.5 MT - 1, 2 M10 Long M/C Tap, 5/16" BSW, BSF Short Hand Tap
Ø 10.00 X □ 08.00 M10 10.00 8.3 MT - 2 3/8" BSW, BSF Short Hand Tap
Ø 9.00 X □ 07.10 M12 9.00 7.4 MT - 2, 3 1/2" BSW, BSF Short Hand Tap
Ø 11.20 X □ 09.00 M14 11.20 9.3 MT - 2, 3 9/16" BSW, BSF Short Hand Tap
Ø 12.50 X □ 10.00 M16 12.50 10.3 MT - 2, 3, 4 5/8" BSW, BSF Short Hand Tap
Ø 14.00 X □ 11.20 M18/20 14.00 11.5 MT - 3, 4 11/16", 3/4" BSW, BSF Short Hand Tap
Ø 16.00 X □ 12.50 M22 16.00 12.8 MT - 3, 4 7/8" BSW, BSF Short Hand Tap
Ø 18.00 X □ 14.00 M24/M25 18.00 14.4 MT - 3, 4, 5 1" BSW, BSF Short Hand Tap
Ø 20.00 X □ 16.00 M27/30 20.00 16.4 MT - 5 1⅛" BSW, BSF Short Hand Tap
Ø 25.00 X □ 20.00 M36 25.00 20.4 MT - 5 1⅜" BSW, BSF Short Hand Tap
Ø 28.00 X □ 22.40 M39/M42 28.00 22.8 MT - 5 1½" BSW, BSF Short Hand Tap

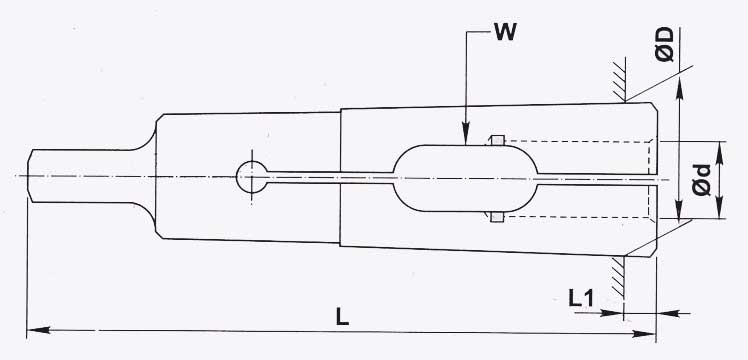

MORSE TAPER SPECIFICATIONS

M.T. No.ØD mmL mmL1 mmSHORT HAND TAP HOLDING RANGE
1 12.065 65.5 3.5 M3 to M8
2 17.780 80.0 5.0 M6 to M16
3 23.825 99.0 5.0 M12 to M24
4 31.267 124.0 6.5 M16 to M24
5 44.399 156.0 6.5 M24 to M42

SPLIT SLEEVES FOR DRILL & CENTER DRILLS

Split Sleeve for Drills are made only for specific Drill sizes as indicated in below table:

M.T. No.Available for Drill Sizes & Center Drill Sizes
MT - 1 4, 4.2, 4.5, 3/16", 5, 5.1, 5.3, 5.5, 7/32", 5.8, 6, 6.3, 1/4", 6.5, 6.7, 17/64", 6.8, 7, 9/32", 7.5, 5/16", 7.8, 8, 21/64", 8.5, BS-1, BS-2, BS-3
MT - 2 5, 5.1, 5.3, 5.5, 7/32", 5.8, 6, 6.3, 1/4", 6.5, 6.7, 17/64", 6.8, 7, 9/32", 7.5, 7.8, 5/16", 8, 21/64", 8.5, 11/32", 9, 23/64", 9.5, 3/8", 10, 13/32", 10.5, 27/64", 11, 7/16", 11.5, 12, 31/64", 12.5, 1/2", 13, 13.5, 14, BS-2, BS-3, BS-4
MT - 3 BS-4, BS-5, BS-6

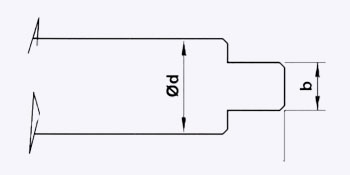

A Driving Tenon must be produced on the back end of the Drill as specified below to give a positive drive to the drill.

Split Sleeve
ØD mmb h12L mm
3.0 to 3.5 1.6 2.2
3.5 to 4.0 2.0 2.2
4.0 to 4.5 2.2 2.5
4.5 to 5.5 2.5 2.5
5.5 to 6.5 3.0 3.0
ØD mmb h12L mm
6.5 to 8.0 3.5 3.5
8.0 to 9.5 4.5 4.5
9.5 to 11.0 5.0 5.0
11.0 to 13.0 6.0 6.0
13.0 to 15.0 7.0 7.0

FOR TAPS:

ORDER BY : MT No. X TAP DIA. X SQUARE SIZE Eg.: Split Sleeve for Taps MT-2 Dia 8 x Square 6.3 mm
If Split Sleeve are Ordered by Tap thread size we would supply them suitable for Short Hand Tap.

FOR DRILLS:

ORDER BY : MT No. x DRILL DIA. Eg.: Split Sleeve for Drill MT-2 Dia 8 mm.
