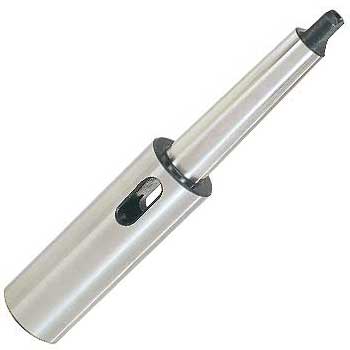

Extension Socket

Applications

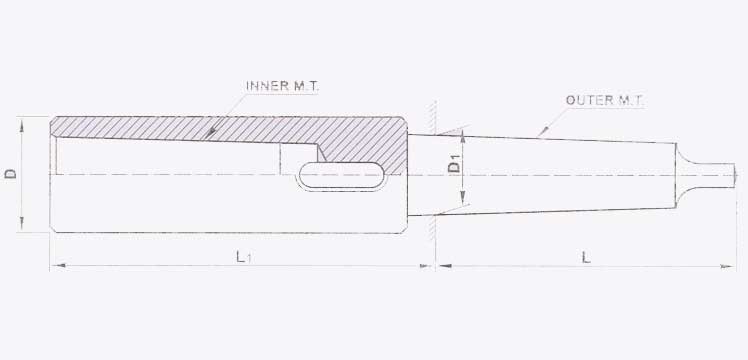

Model No. MTOuter M.T.Inner M.T.Ø D mmØ D1 mmL mmL1 mmWeight Kg.
1-1 1 1 20 12.065 62.0 83.0 0.225
1-2 1 2 30 12.065 62.0 98.0 0.460
2-1 2 1 20 17.780 75.0 85.0 0.310
2-2 2 2 30 17.780 75.0 100.0 0.535
2-3 2 3 36 17.780 75.0 121.0 0.800
3-1 3 1 20 23.825 96.0 79.0 0.475
3-2 3 2 30 23.825 94.0 100.0 0.740
3-3 3 3 36 23.825 94.0 121.0 0.985
3-4 3 4 48 23.825 94.0 146.0 1.690
4-1 4 1 20 31.267 117.5 82.5 0.805
4-2 4 2 30 31.267 117.5 97.5 1.060
4-3 4 3 36 31.267 117.5 122.5 1.315
4-4 4 4 48 31.267 117.5 147.5 2.095
4-5 4 5 63 31.267 117.5 182.5 3.500
5-1 5 1 20 44.399 149.5 82.5 1.800
5-2 5 2 30 44.399 149.5 97.5 1.990
5-3 5 3 36 44.399 149.5 118.5 2.275
5-4 5 4 48 44.399 149.5 150.5 3.300
5-5 5 5 63 44.399 149.5 185.5 4.800
5-6 5 6 83 44.399 149.5 247.5 8.100
6-2 6 2 30 63.348 210.0 99.0 5.200
6-3 6 3 36 63.348 210.0 120.0 -
6-4 6 4 48 63.348 210.0 145.0 6.300
6-5 6 5 61 63.348 210.0 180.0 7.500
6-6 6 6 83 63.348 210.0 242.0 10.500
6-7 6 7 105 63.348 210.0 328.0 -

ORDER BY : Model No. Eg. EXTENSION SOCKET MT 3-2
